기술적 특징 solutions never seen before

The several technical 오버랜드's innovations create a new quality and comfort which have never been achieved by tents using side closings. Autohome has completely revised/redesigned the basic idea of roof tents by creating an entirely new type of structure/frame.
The indestructable frame incorporates brackets for the attachment of the access ladder. While the unique Autohome Automatic Ladder Security System (ALSS) prevents the ladder from slipping, the spring loaded 'locking device' ensures the tent remains stable under any conditions.

Automatic Ladder Security System, how innovation is created:
The stability of the structure is assured by very big support bars. The ladder is fixed by pegs: this solution is not good on hard or slippery ground. The structure is equipped with Self supporting structure which shorter or longer ladder tie bars. Self supporting structure which shorter or longer ladder tie bars. incorporates the Automatic Ladder Security System (ALSS) is created!
Elastic tensioning straps inside the tent help to fold the fabric into place when closing the tent, particularly useful on high vehicles.
colors
High quality 420g fabrics, are both waterproof and breathable due to their 50% cotton – 50% acrylic construction.

Choose your colour.

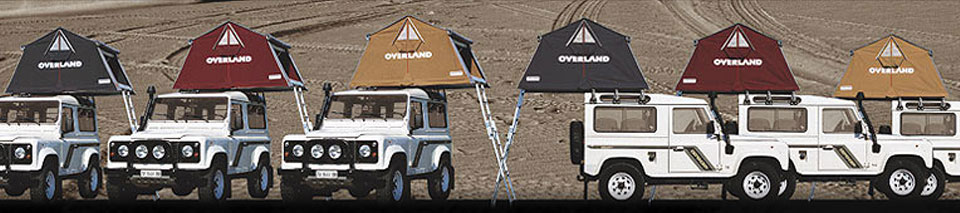

All the 오버랜드 models are available in three colour combination: Carbon, Bordeaux and 사파리.
By varying the configuration of the "C" guide mounting rails, the tent can be mounted in two ways. Standard mounting, opening to the side of the vehicle, or Explorer mounting opening to the front or rear of the vehicle. With the Explorer mounting being particularly suitable for off-road vehicles.

비디오 오버랜드 Tech TV

The reinforced aluminium ladder can easily be extended from 110cm up to 225cm making it suitable for any vehicle and the steel guides ensure its stability, even in sand. When travelling the closed ladder lies on the base of the tent under the travel cover (110 cm when it is closed). The ladder has a simple to operate mechanism allowing full adjustment to be carried out even in total darkness. The strong structure consists of special profiles being incorporated in the frame, which give the structure the highest transversal rigidness. Developed to withstand under any conditions.
Strong PVC travel over cover, Small packed size. Support bars hold open the doors to create awnings. Support bars hold open the doors to create awnings. To protect against cold, wind and sand, a special zip fastener, can be closed at the base of the door.
The windows are equipped with drip, mosquito net and double roll up, roll down protection curtains to be adjusted from inside through strings and zip fasteners: protection from wind and rain. The plates on the sides better fix the fabric at the base of the tent. The large openings are equipped with mosquito nets that can be closed by double slide zip fasteners. The roof stakes are equipped with condensate proof covering: no need of additional sheets or inner cabins.
Each tent has two large storage pockets. Elastic strap, used to hold bedding in place when packing down the tent. Compression straps ensure the tent and bedding remain in place whilst travelling. The outer of the bottom shell has been given a plastic coating, for incresed longevity, while the mattress inside, sits in an insulating protective cover.
Unique "C" guides and clamps allow for easy installation and removal of the tent from the vehicle.
Mounting Standard Mounting Explorer
montaggio overland
